NEW

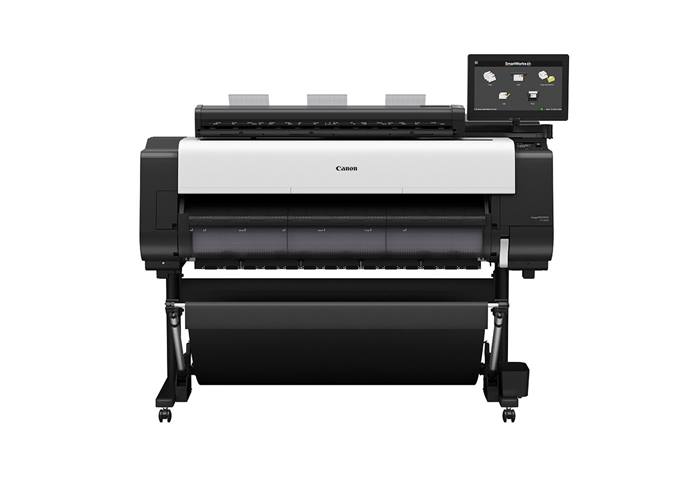

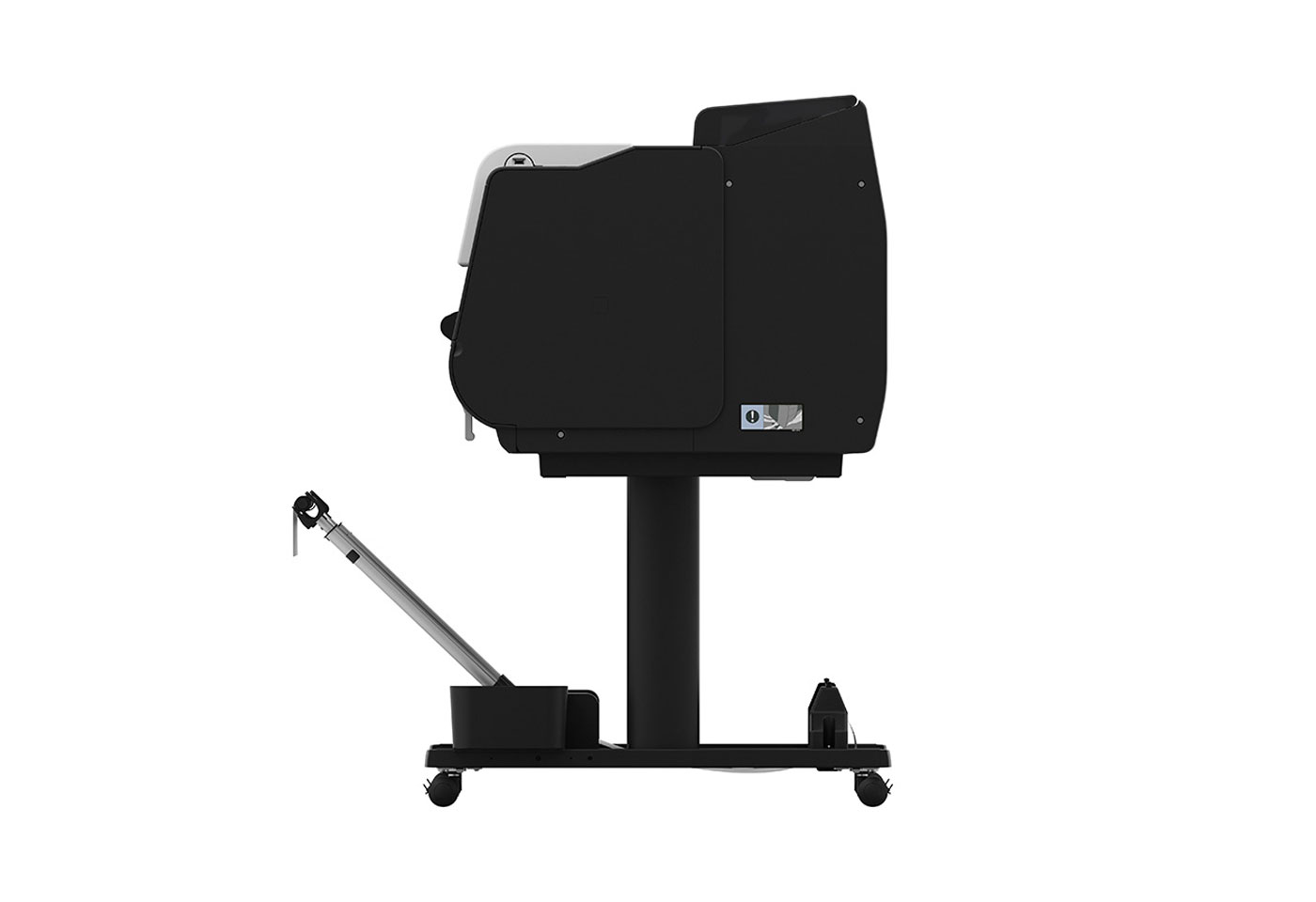

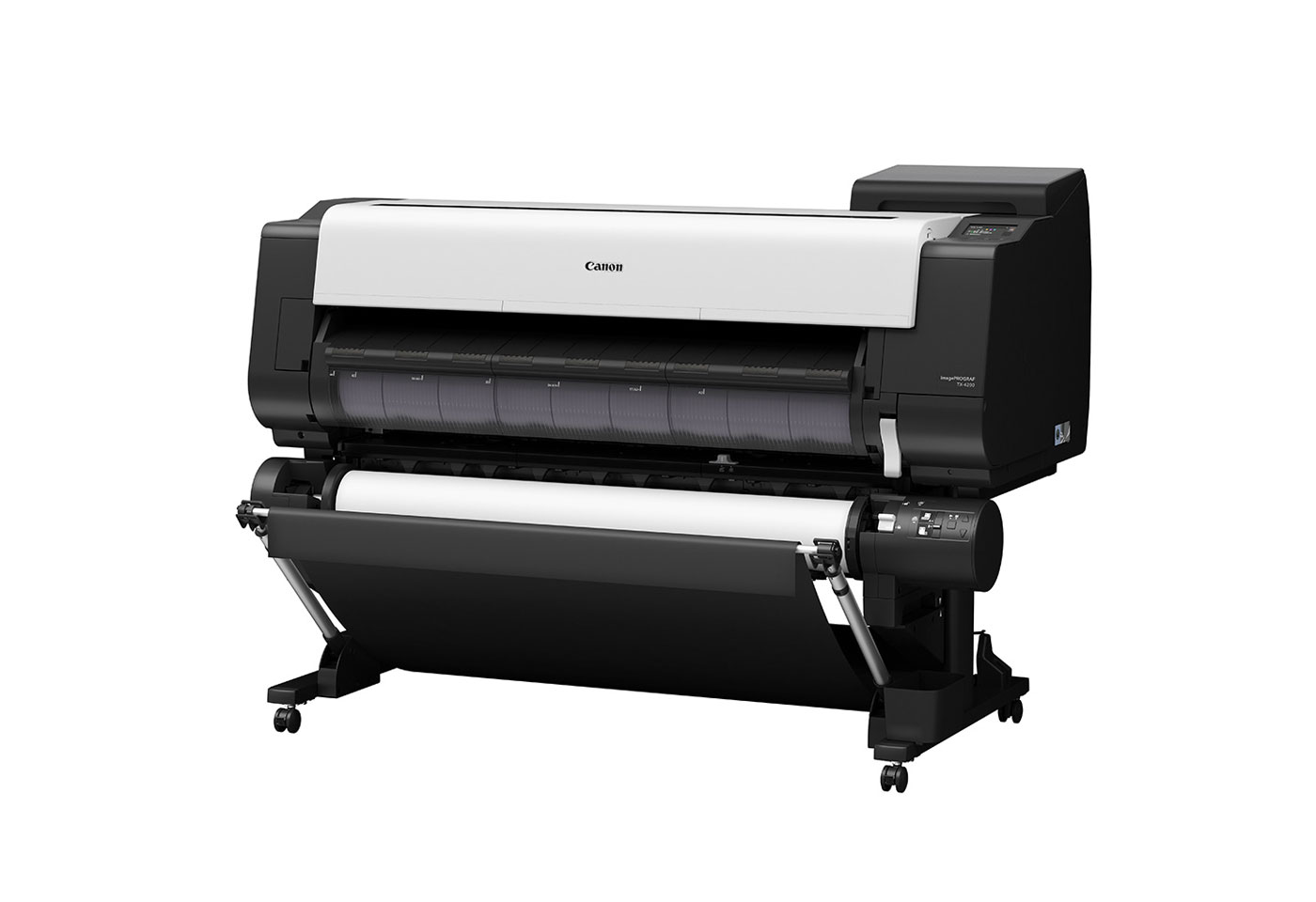

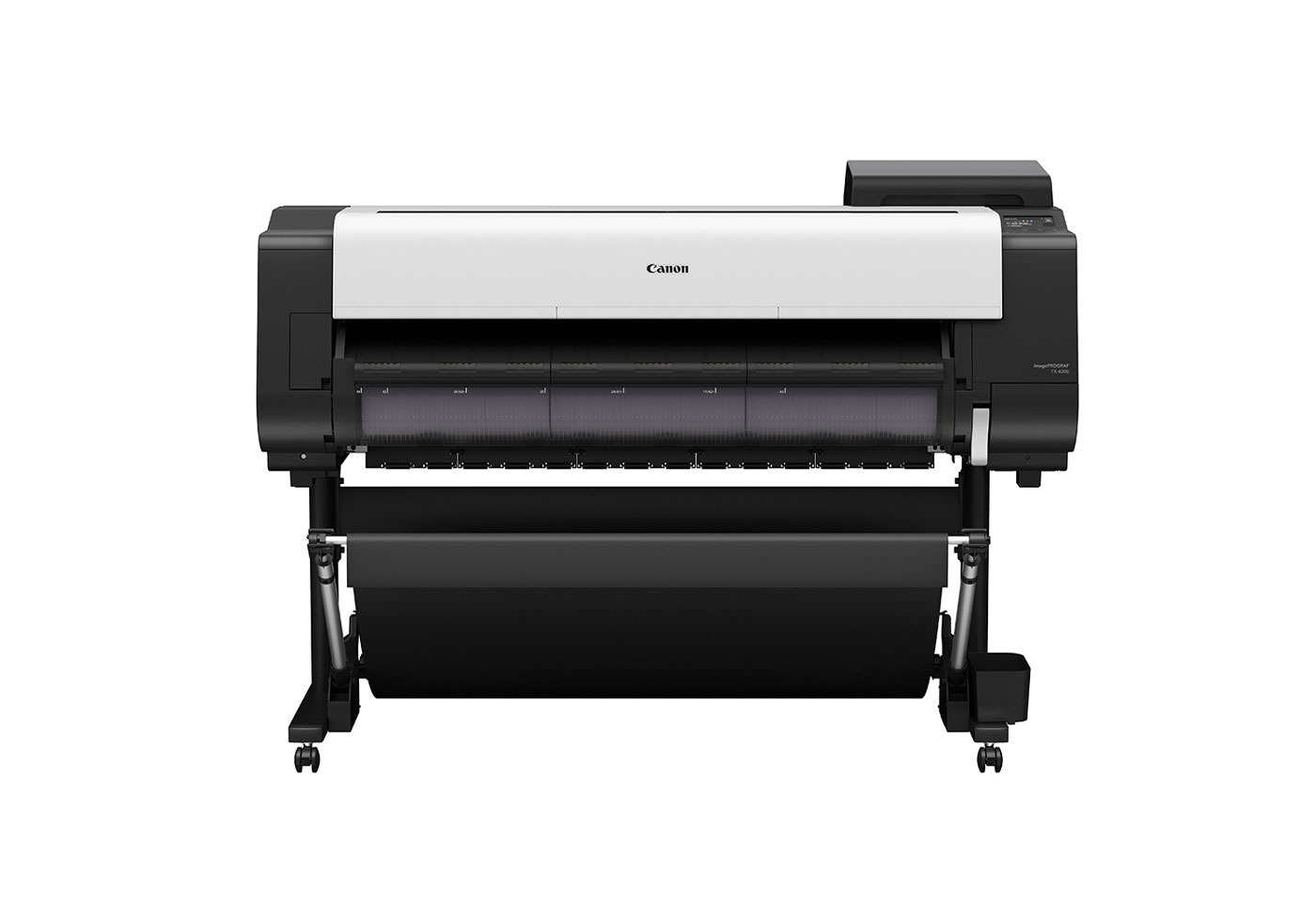

imagePROGRAF TX-4200

High productivity B0 wide format printer for both technical CAD drawing and in-house poster printing with efficient media handling.
  • High volume B0 CAD and poster printing
  • Automatic media loading and detection
  • Optional dual roll
alt-text
alt-text
alt-text
Request information
High productivity B0 wide format printer for both technical CAD drawing and in-house poster printing with efficient media handling.
  • High volume B0 CAD and poster printing
  • Automatic media loading and detection
  • Optional dual roll

Multi-purpose versatile printer for high volume operation

Canon imagePROGRAF TX-4200 is built to print high-volume technical drawings and posters. The TX-4200 has efficient paper handling and fast print operation as well as workflow software to help manage all print tasks.

  • Quick and efficient

    The TX-4200 prints A1 CAD drawing in 17 seconds*. (*Fast print mode on plain paper. Print speed does not include the time required for data processing, data transfer, and preprinting operations.)

    fast print speed icon
  • Smart roll feeding system maximises productivity

    With an automatic media loading system, you simply load the media and let your printer do the rest. Feed in the paper then detect media type, width, and length with built-in multi-sensors.

    Effortless roll changing icon
What you'll get
  • Reduce wasted time ink and media

    Hot swap ink replacement to maximise output

    Canon’s ‘hot swap ink system’ uses a sub-ink tank so you can replace inks on the fly. This helps to reduce downtime and boost productivity.

  • Double the speed double the quality icon

    High-definition printing

    The enhanced image quality features enable detailed CAD prints, from line drawings to maps, to be printed more accurately.

  • Magenta color icon

    New Magenta ink and improved colour processor

    Newly developed Magenta colour ink and image processor provide a more vivid and rich colour poster.

  • Large ink tanks icon

    Enjoy large capacity ink bottles

    The TX-4200 comes with large-capacity ink bottles, including 5 x 330ml (Matte Black, Black, Cyan, Yellow and Magenta). There are three different size replacements to choose from - 160ml, 330ml or 700ml.

Specifications and brochure

Functions
Print
Maximum Printing Resolution
2400 x 1200dpi
Paper Sizes
Up to 44"
Colours
5 colours
Connectivity
LAN, Wi-Fi, USB, Mobile
Ink Type
Pigment
Borderless Printing
Yes
Display
4.3" LCD touch screen
Stand Type
With stand
Hard Disk
500GB
Dual Roll
Optional

See the product in action

Book a demo*View virtual showroom

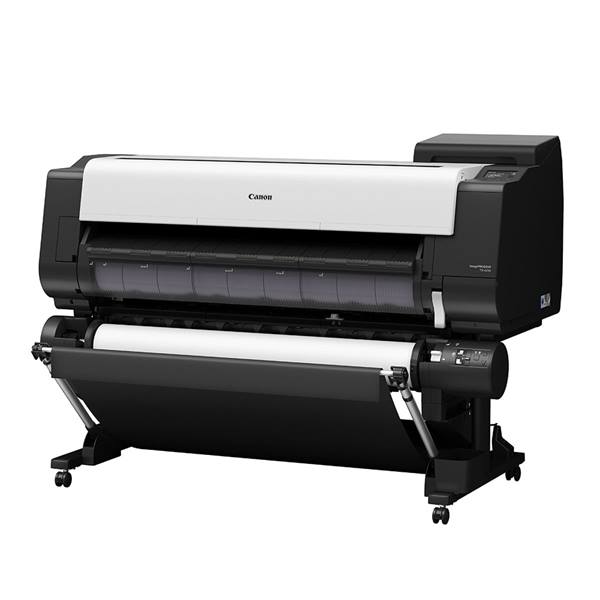

Highlight image of imagePROGRAF TX-4200
*Not all products are available for demonstration.
