Remote Camera Controller RC-IP1000

Remote control for up to 200 PTZ remote cameras
  • 7-inch touch screen panel
  • Variety of controllers including focus dial
  • Interface - 12G-SDI in/out, HDMI out and IP in
alt-text
alt-text
alt-text
alt-text
Pre-order
Remote control for up to 200 PTZ remote cameras
  • 7-inch touch screen panel
  • Variety of controllers including focus dial
  • Interface - 12G-SDI in/out, HDMI out and IP in

Precise and fast remote camera control ideal for broadcast, dramas, reality shows and event streaming.

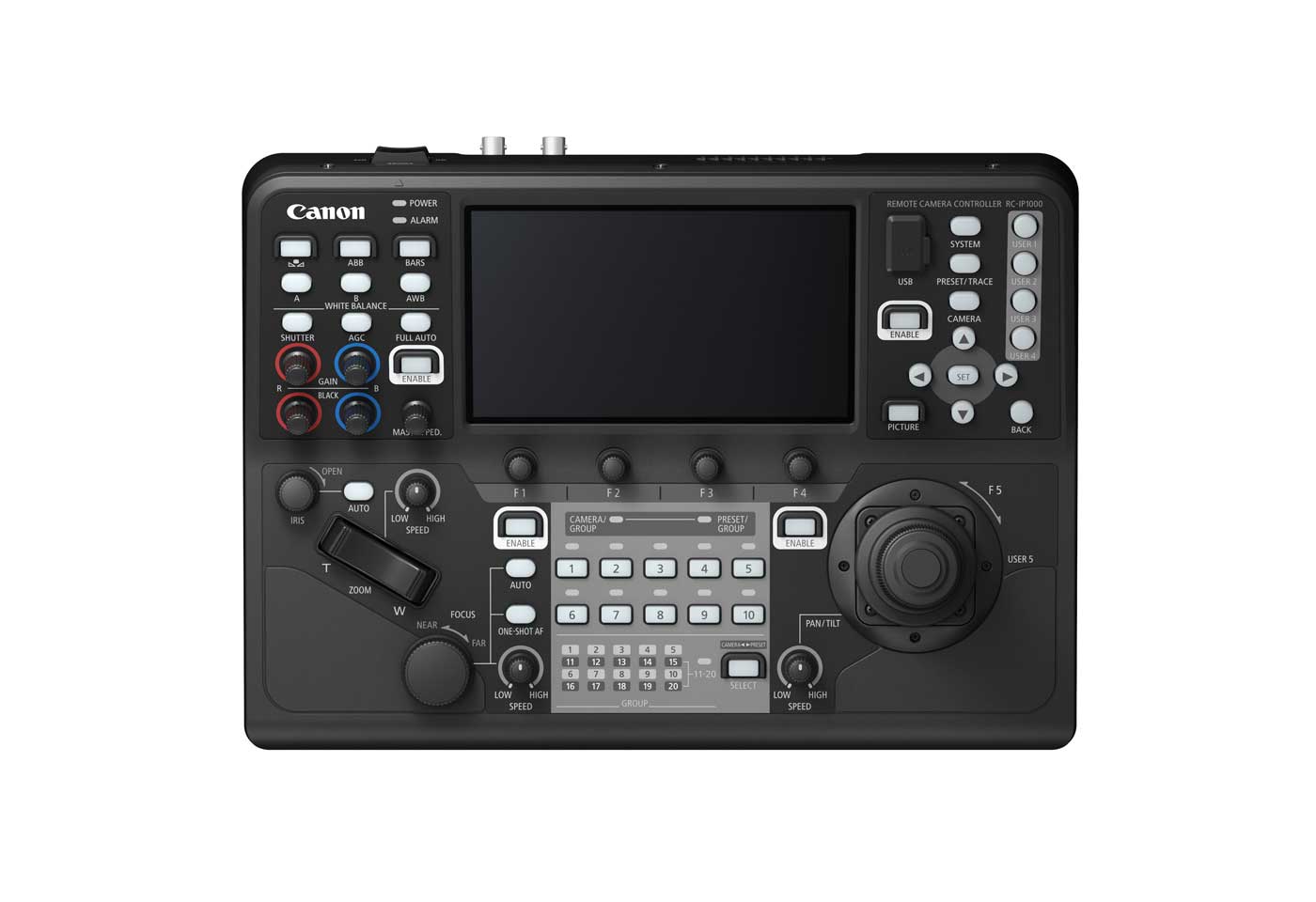

Top profile image of Remote Camera Controller RC-IP1000
  • Intuitive operation and ease of use

    The Remote Camera Controller RC-IP1000 is equipped with a range of buttons, dials and LEDs, as well as control lever, zoom rocker and focus dial enabling quick and intuitive operation. The 25° sloped surface also improves visibility and provides comfortable operation.

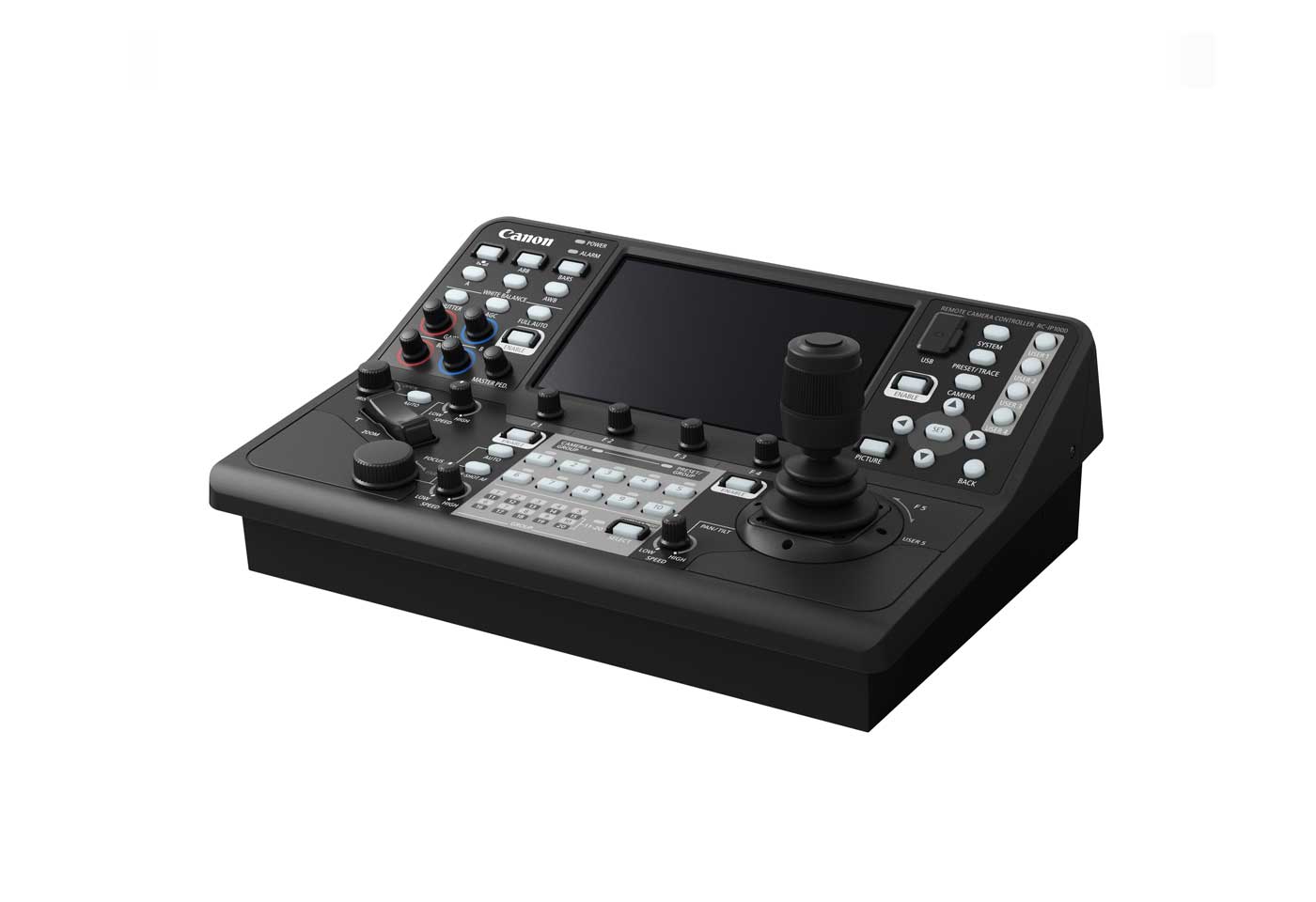

    Slant right profile image of Remote Camera Controller RC-IP1000
  • Customisable controls

    In addition to a clear control panel layout with operations grouped into categories, users can assign functions to the customisable controls. The touch panel provides ten user buttons and five function dials that can be configured with frequently used functions. The touch control on the status screen, User 1-5 buttons and F1-5 dials also lets users directly access assigned features.

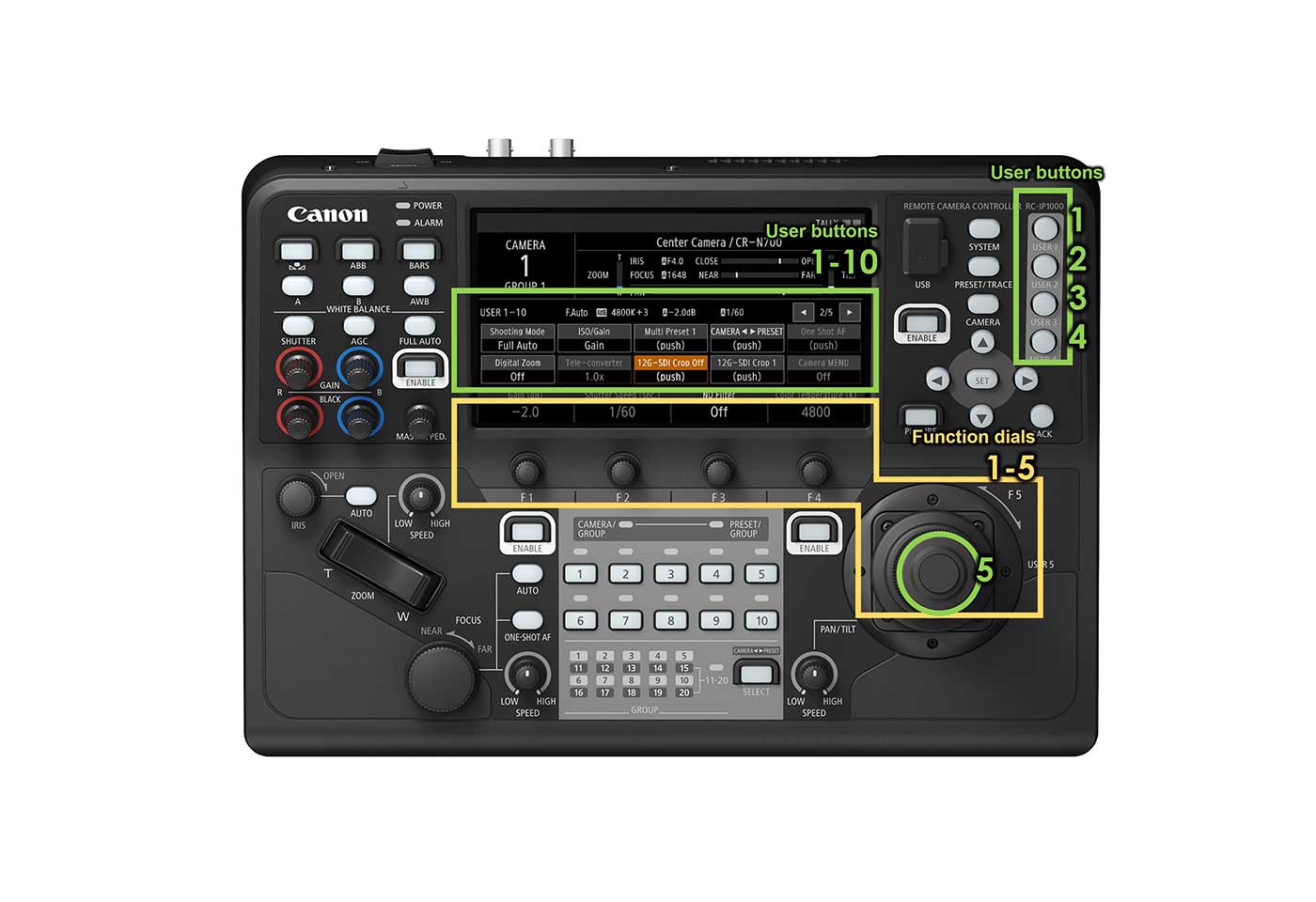

    Customisable controls of Remote Camera Controller RC-IP1000

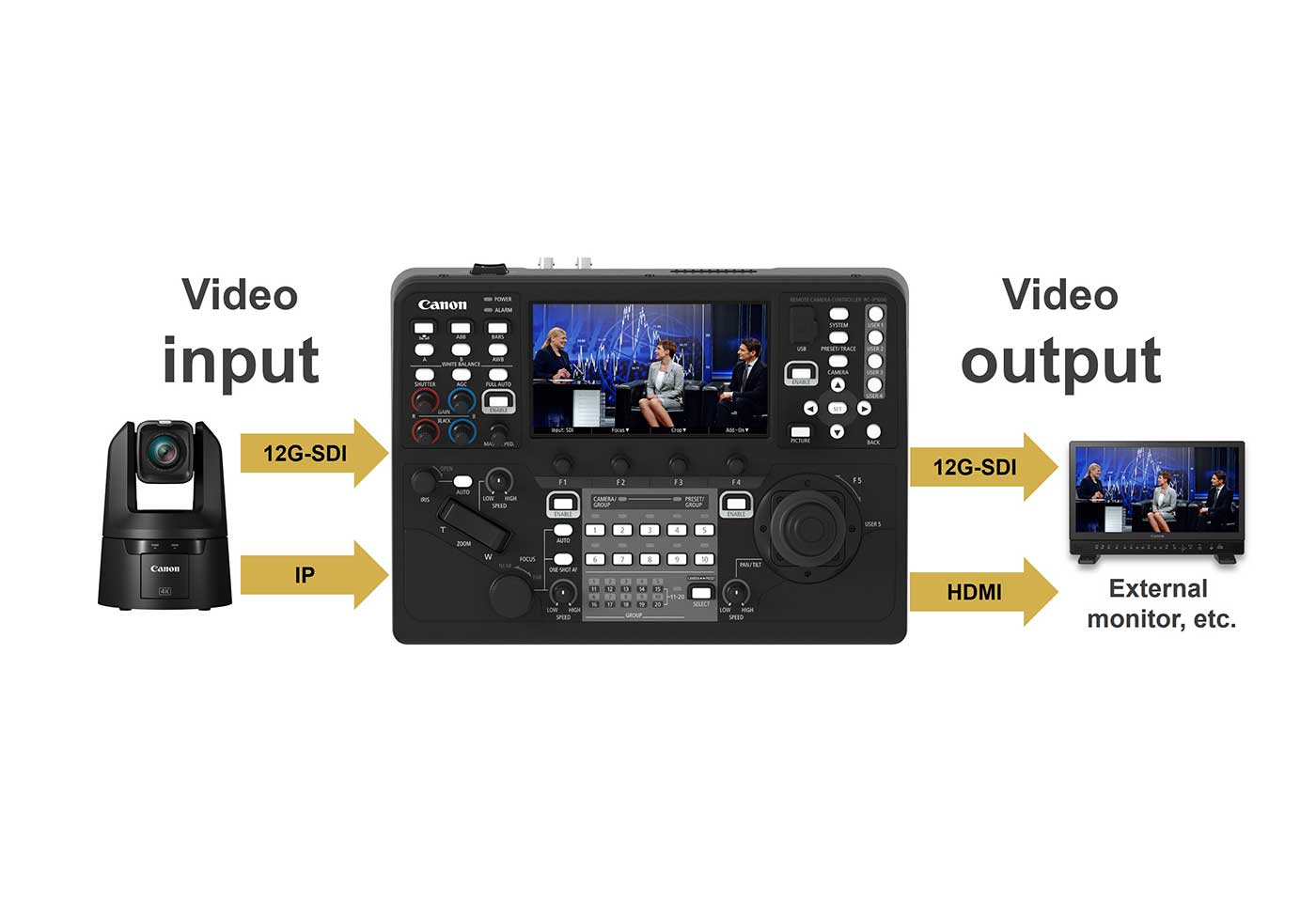

  • Wide range of video interfaces

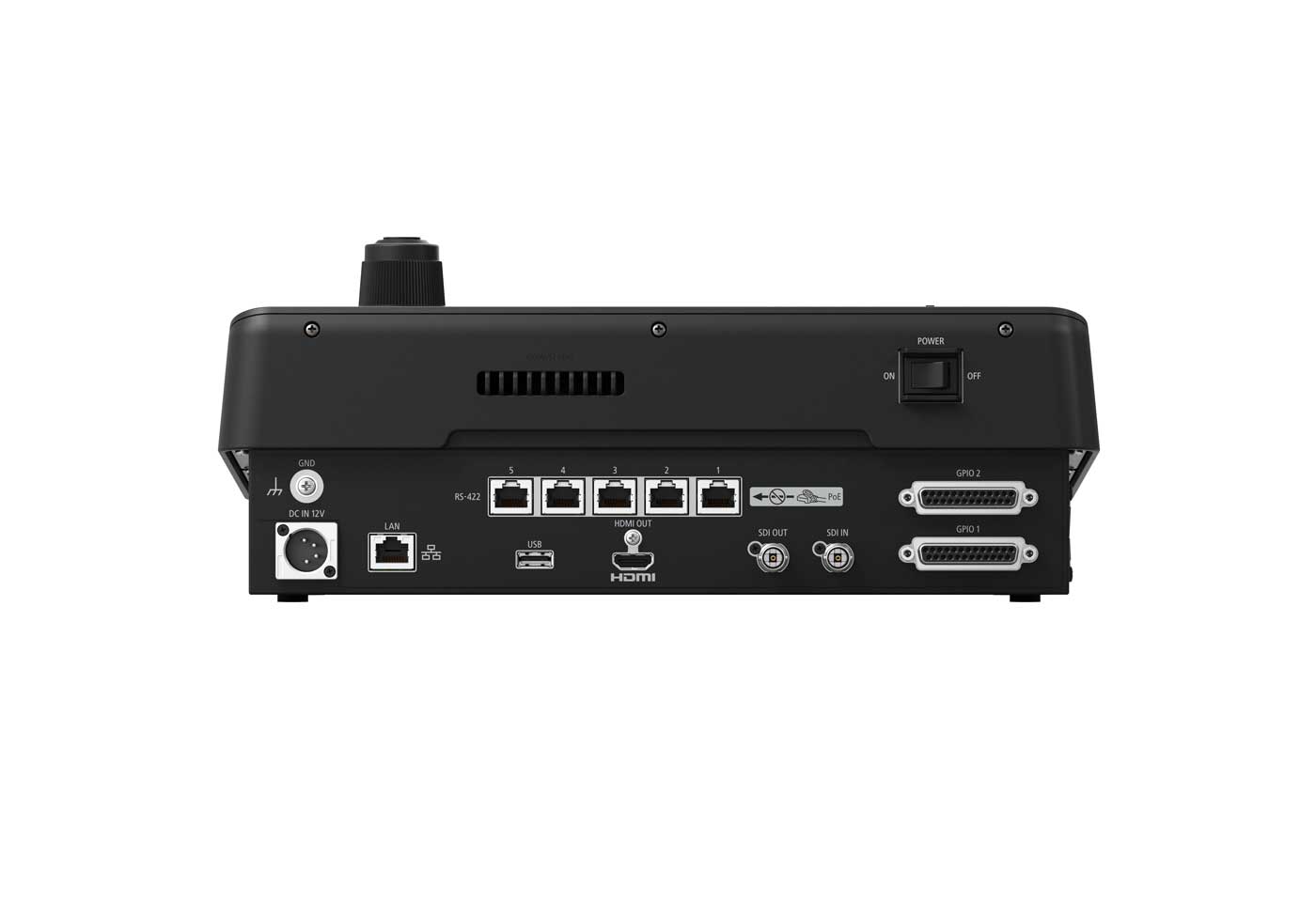

    The Remote Camera Controller RC-IP1000 is compatible with the popular broadcast industry 12G-SDI input for 4K 60p, as well as visual input via IP and HDMI video output. Whether using SDI or IP, input video can also be output to an external monitor or other device connected via SDI or HDMI for display.

    Video interfaces of Remote Camera Controller RC-IP1000
  • Compatible with large systems

    A single RC-IP1000 controller can be used to operate up to 200 connected Canon cameras. Up to 20 groups managing up to 10 cameras each can be set up to create large-scale systems great for mutli-video and multi-angle streaming and recording.

    Basketball game

Specifications and brochure

No. of Connectible Cameras
200
No. of Camera Select Buttons
10
Video Interfaces
12G-SDI in/out, HDMI out, IP in
LCD display
7-inch touch panel
Other Controllers
Control lever, zoom rocker, focus dial, user buttons x 5, dials x 14, up down left right select buttons
Supported Protocols
XC protocol (IP) NU protocol (serial)
Power Supply
DC12V adapter
Approx. Dimensions
342 x 145 x 245mm (excluding controller level, protruding parts)
Approx. Dimensions
3.4kg

Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
