Remote Camera CR-N500

4K video with high precision Pan and Tilt mechanism
  • 15x optical zoom lens
  • Large 1" CMOS sensor supporting 4K definition
  • Dual Pixel CMOS AF with face detection

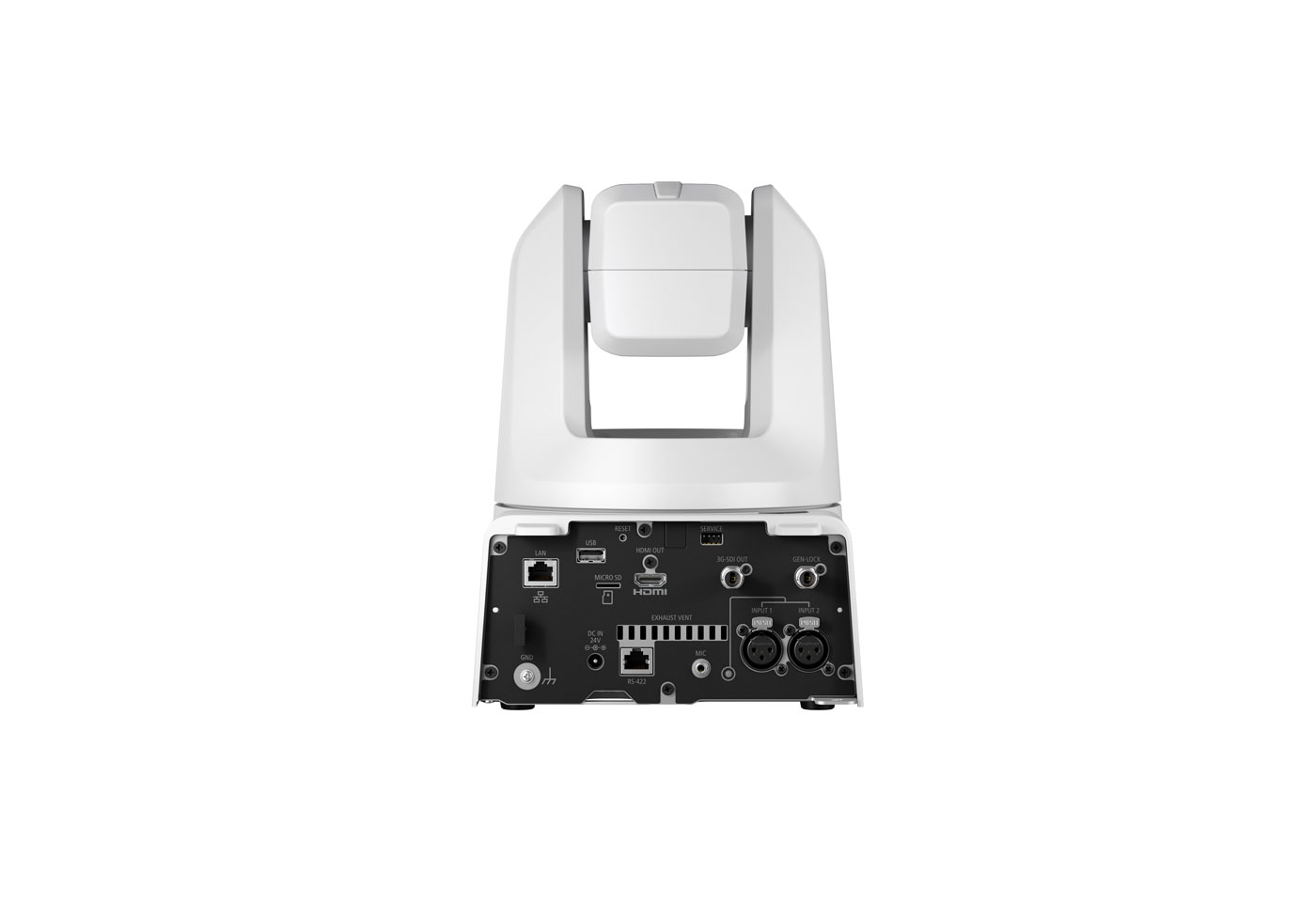

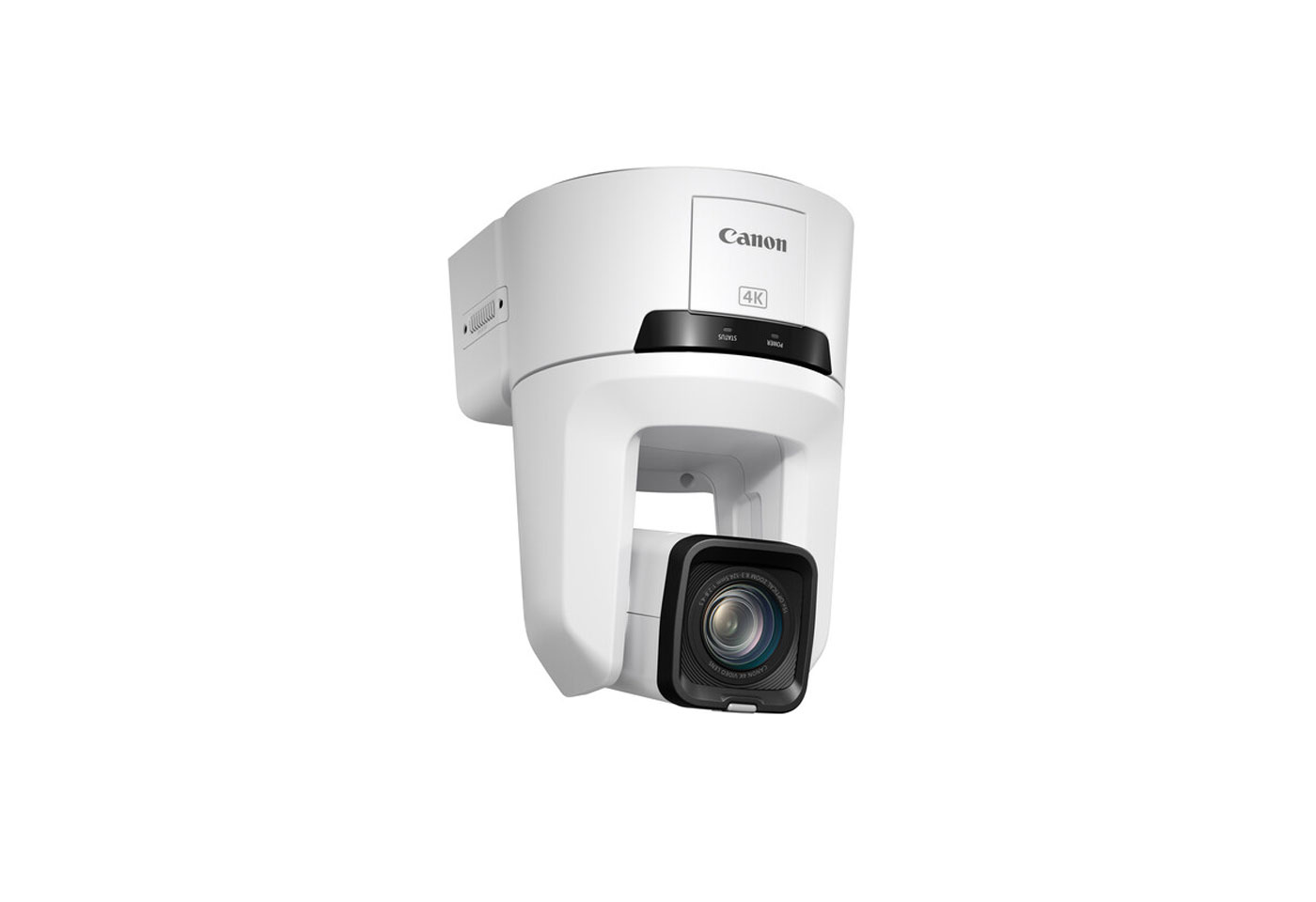

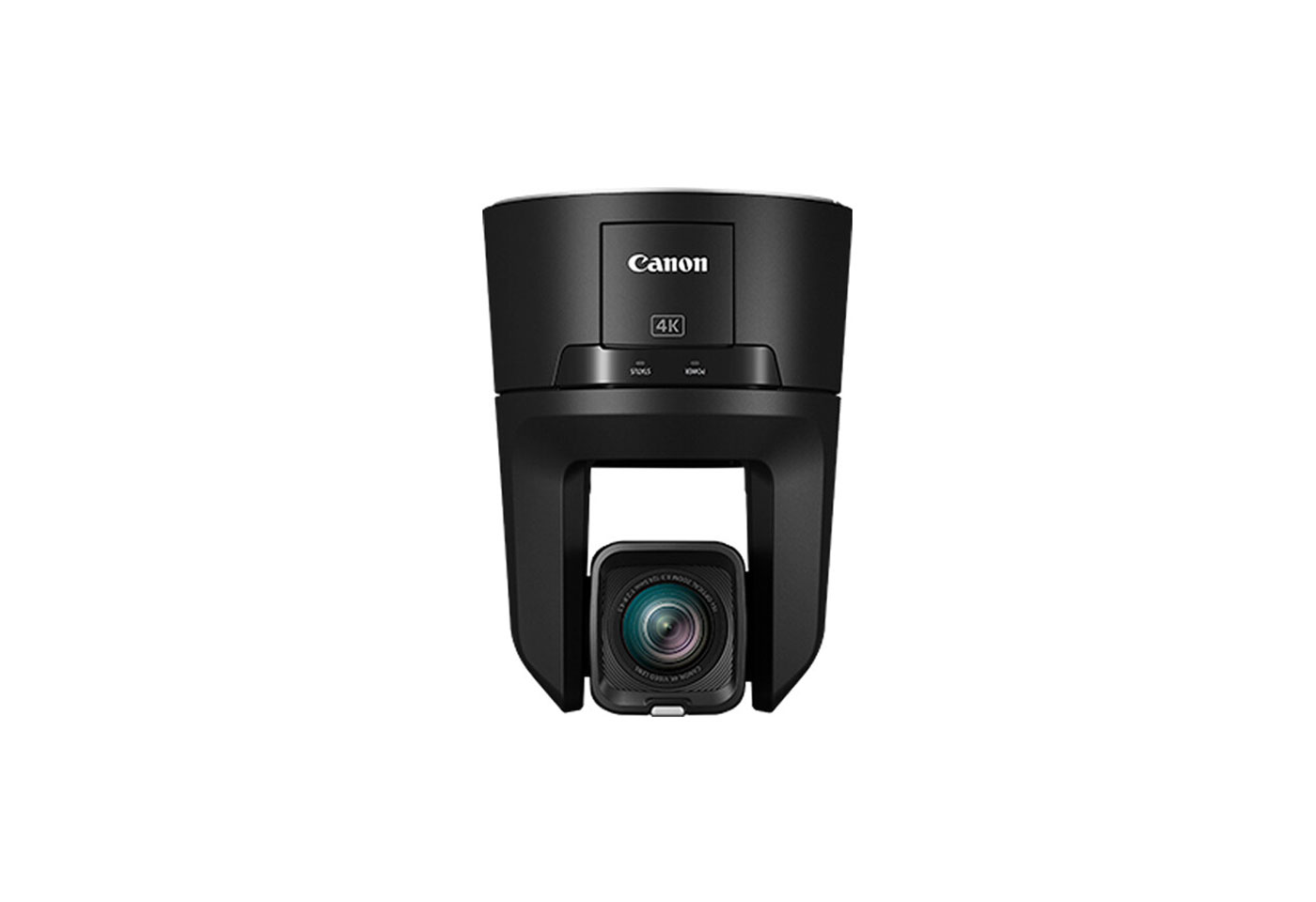

alt-text
Colour options
4K video with high precision Pan and Tilt mechanism
  • 15x optical zoom lens
  • Large 1" CMOS sensor supporting 4K definition
  • Dual Pixel CMOS AF with face detection

Remote PTZ Camera CR-N500 | Stupid Old Studios

Remote Camera with 1" CMOS Sensor 4K video, 15x optical zoom and high precision Pan and Tilt mechanism

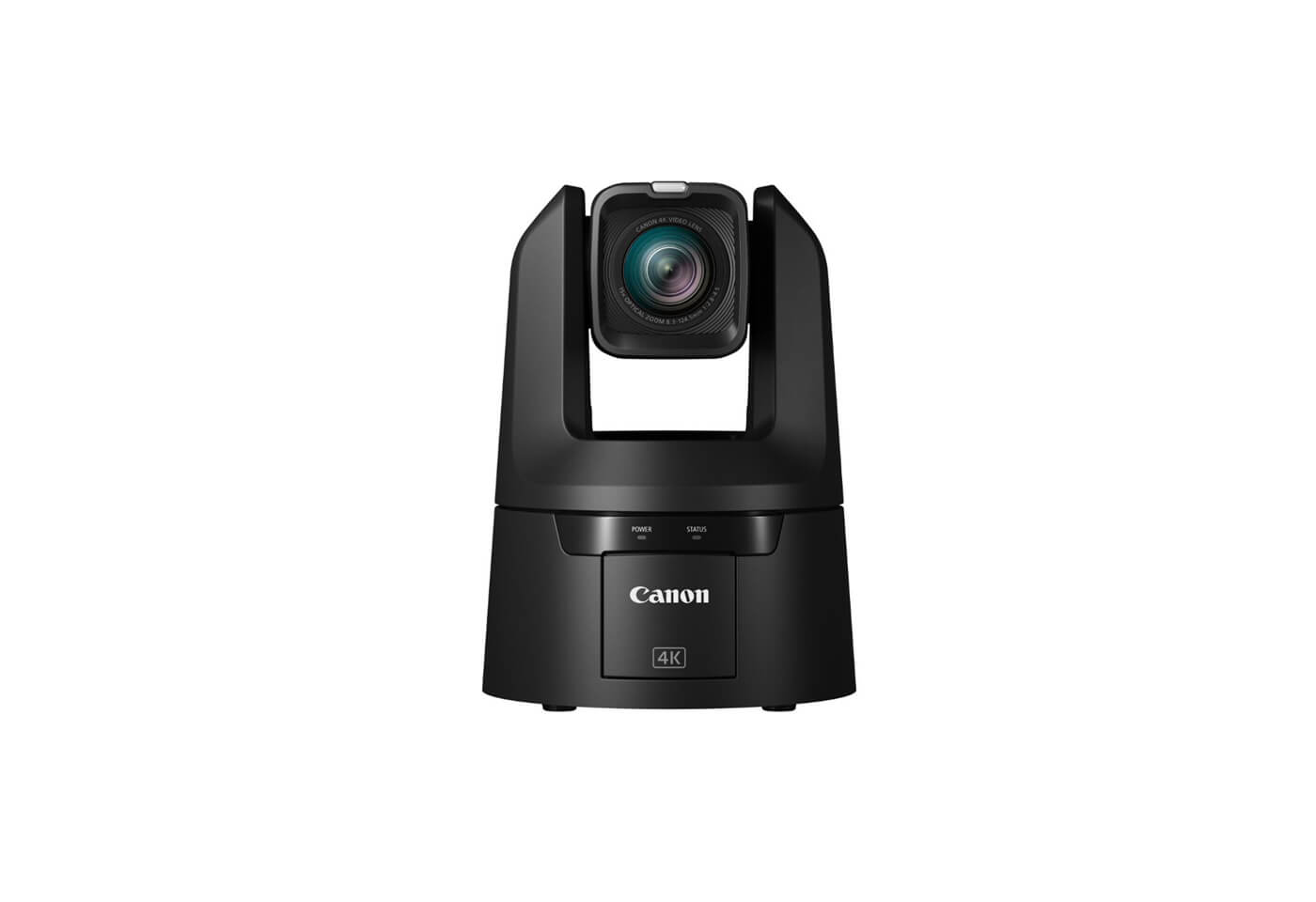

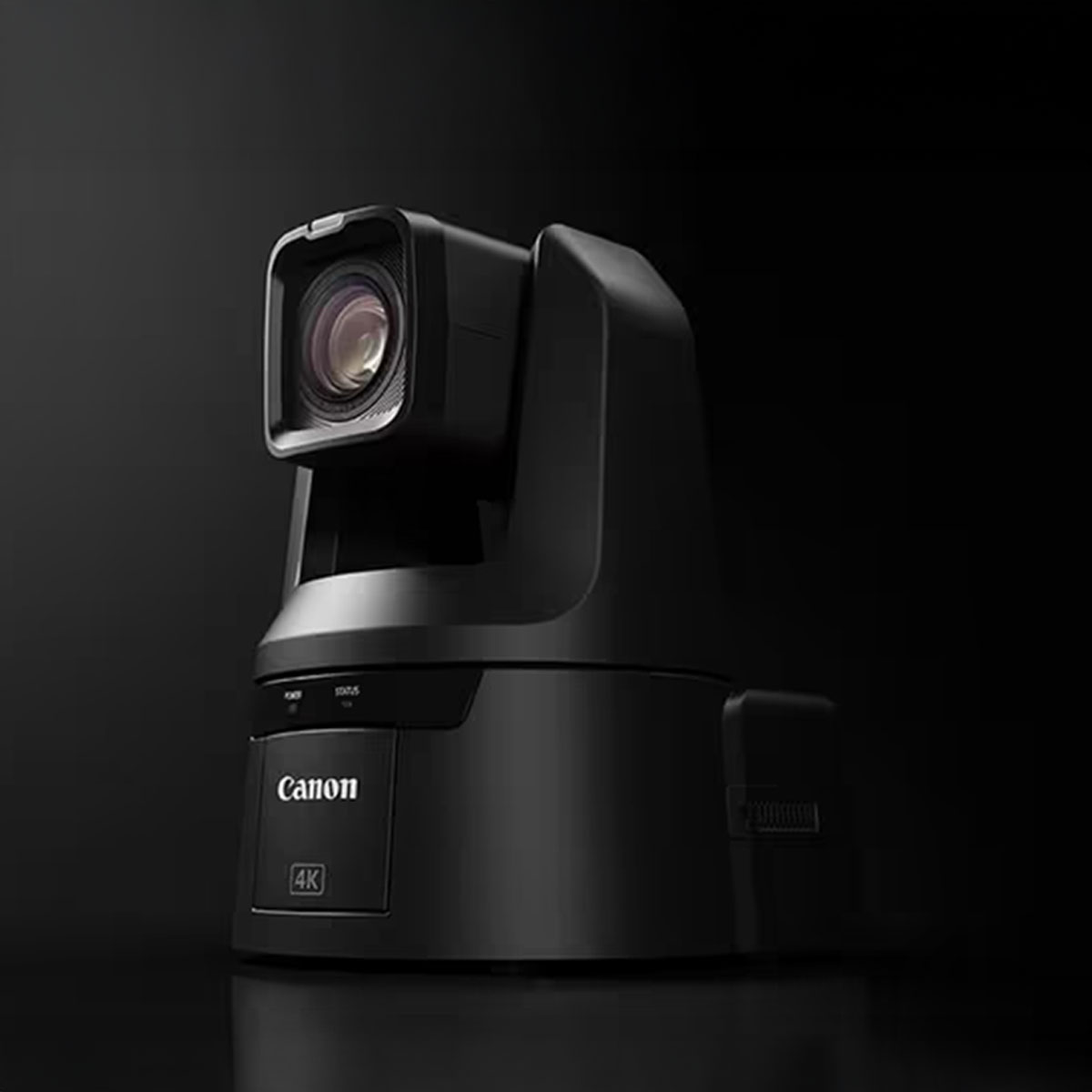

Product image of CR-N500 remote camera

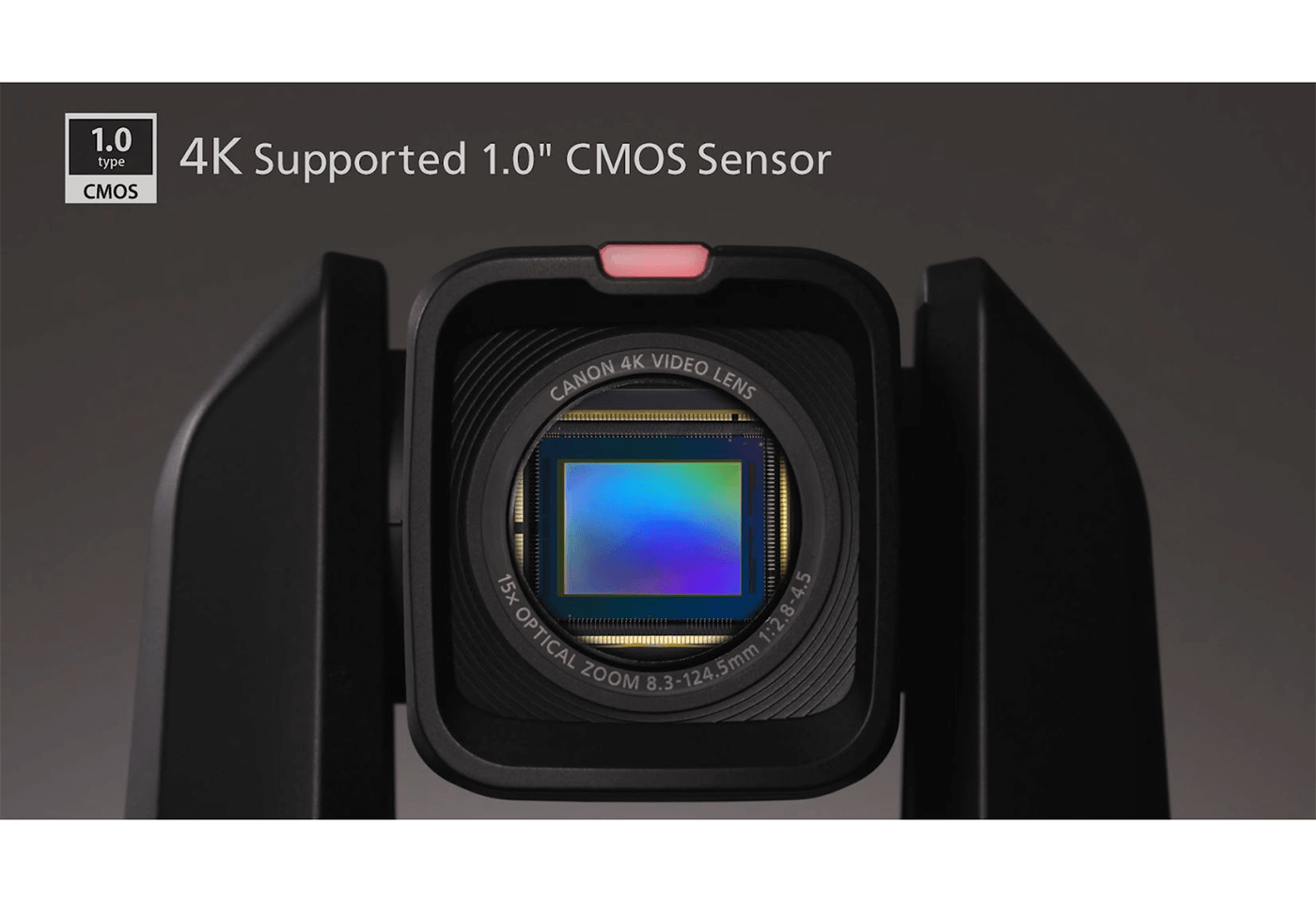

  • Large 1" 4K CMOS Sensor

    A large size Type 1.0 CMOS sensor with 4K support is adopted to achieve high sensitivity and a shallow depth of field.

    Large 1" 4K CMOS Sensor

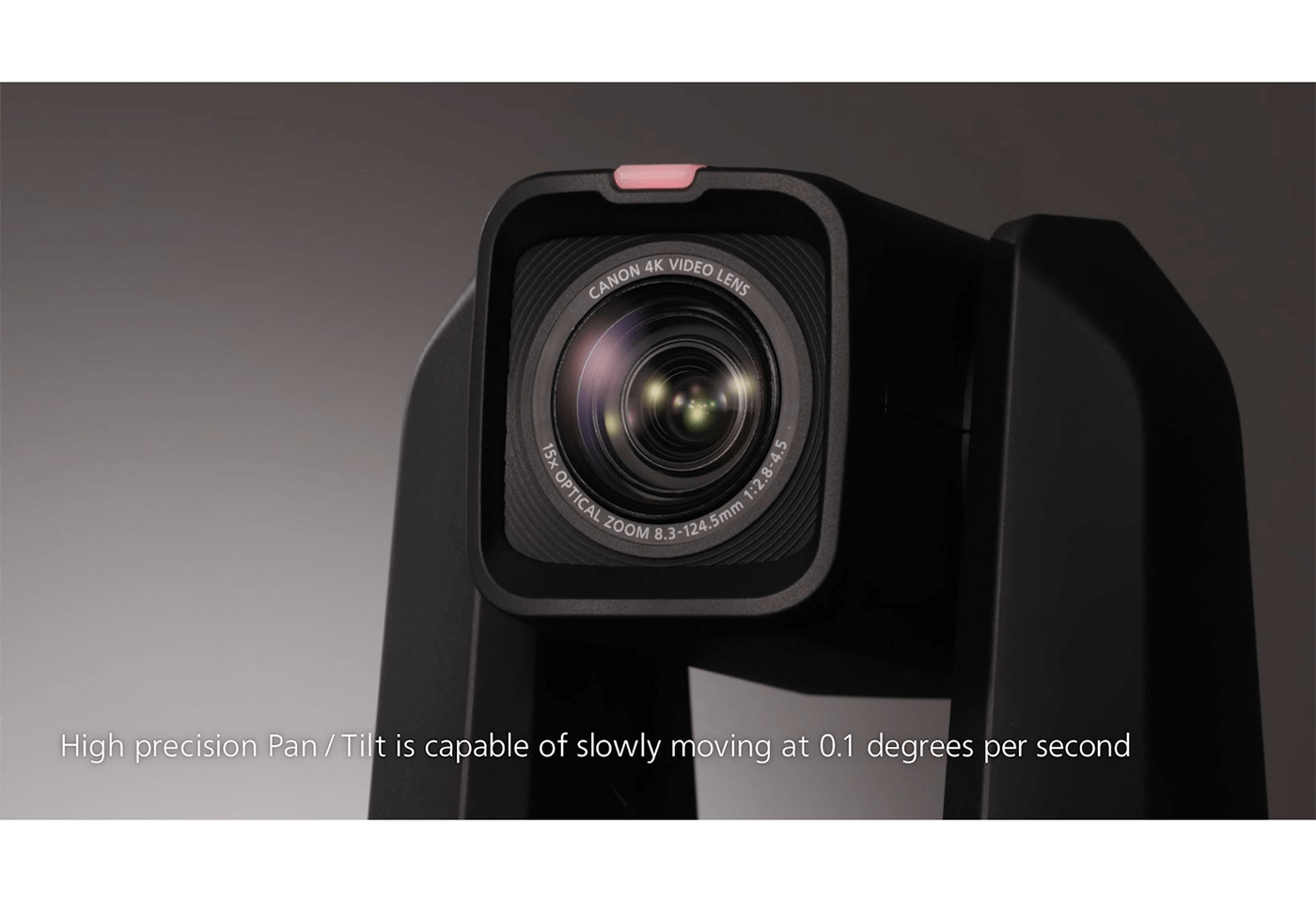

  • Pan, Tilt and Zoom control

    Remote control operation allows Horizontal Pan movement by ±170°, Vertical Tilt movement from -30° to +90° and 15x Optical Zoom

    Pan, Tilt and Zoom control

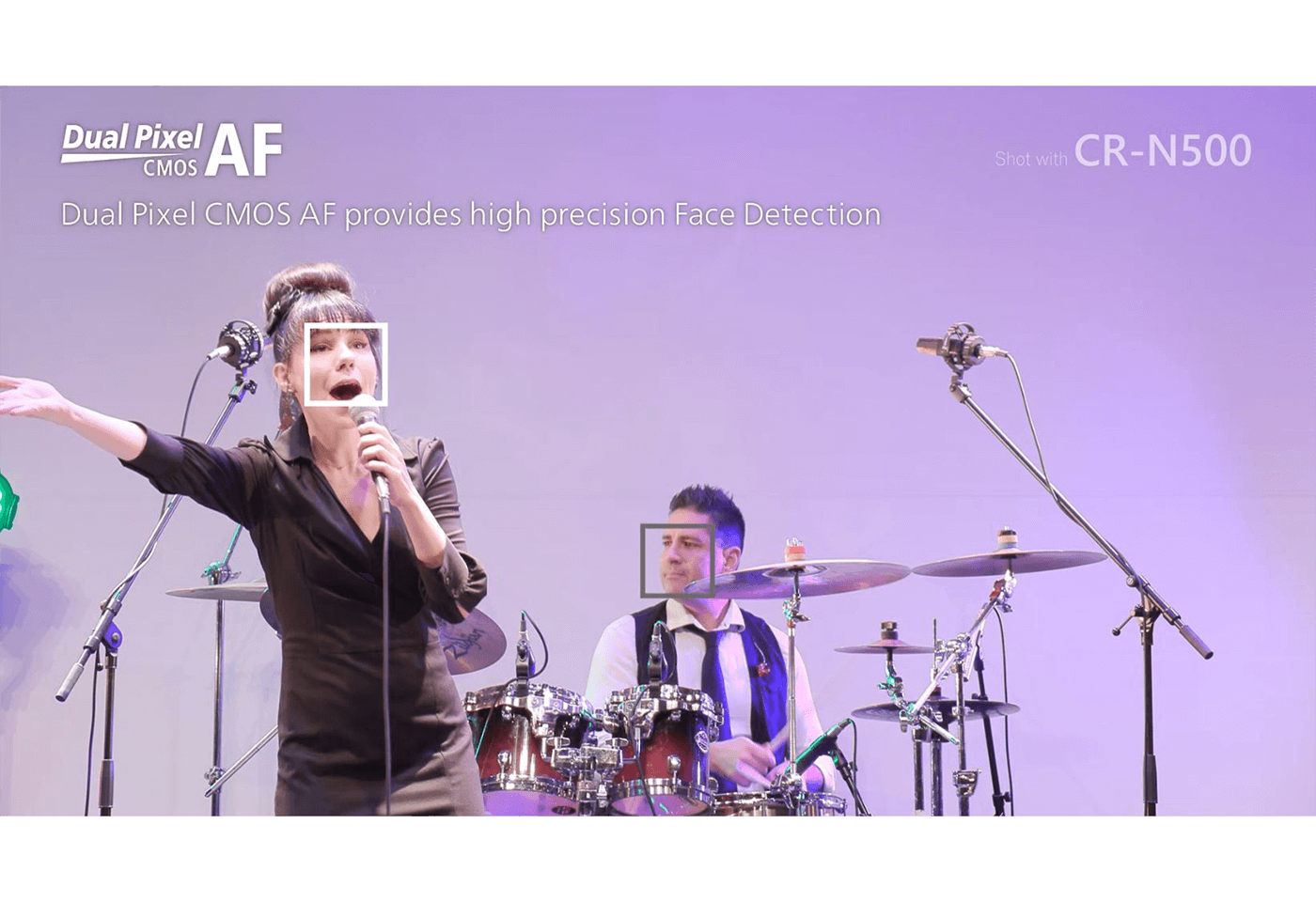

  • Dual Pixel CMOS Autofocus with Face Detection

    Dual Pixel CMOS AF is a high-speed, high-precision phase difference autofocus technology and supports a highly accurate face detection AF

    Dual Pixel CMOS AF is a high-speed, high-precision phase difference autofocus technology and supports a highly accurate face detection AF
  • Fits the demands of video production and distribution

    The CR-N500 is equipped with acclaimed image quality modes from Canon’s high-end professional video camcorders including Wide DR Gamma and Canon Log 3 capable of post-production processing

    The CR-N500 is equipped with acclaimed image quality modes from Canon’s high-end professional video camcorders including Wide DR Gamma and Canon Log 3 capable of post-production processing

Specifications and brochure

Image Sensor
1" CMOS Sensor
Optical Zoom
15x
Focal Length
25.5mm - 382.5mm (4K UHD)
Maximum Resolution
4K 30p (3840 x 2160)
Video Compression (Max)
4:2:2 10 bit (via SDI or HDMI)
Video Output
3G-SDI, HDMI, IP
Pan Operating Range and Speed
±170°, 0.1°/s - 100°/s
Tilt Operating Range and Speed
-30°- 90°, 0.1°/s - 100°/s
ND Filter
Y (1/4, 1/8, 1/16)
Video Codec
H.264, H.265, JPEG
Control Interface
IP / RS-422 / Wi-Fi / IR Remote Control
Minimum Subject Illumination
1.5 lux

Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Add-on applications (Auto Tracking & Loop)

Free pre-installed auto tracking with latest firmware. Take advantage of Auto Tracking App RA-AT001 (Lite) to follow a subject automatically. A paid version (RA-AT001) unlocks extra versatility. Auto loop App automates simple repeated camera movements.

Auto Tracking Application RA-AT001Auto Loop Application RA-AL001
