Displaying the Electronic Level When Shooting (EOS 5D Mark IV)

You can display the electronic level on the LCD monitor and in the viewfinder to help you correct the camera tilt.

Displaying the Electronic Level on the LCD Monitor

1. Turn on the camera.

2. Press the [INFO.] button to display the electronic level.

Caution

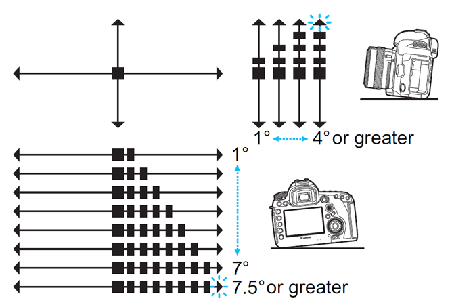

3. Check the camera’s tilt.

: Vertical level : Horizontal level

Caution

Caution

Displaying the Electronic Level in the Viewfinder

An electronic level can be displayed on the upper part of the viewfinder. Since this indicator is displayed during shooting, you can take the picture while checking the camera tilt.

1. Set the power switch to ⋖ON⋗.

2. Press the ⋖MENU⋗ button to display the menu screen.

3. Press the ⋖⋗ button, then turn the ⋖ ⋗ dial to select [ ].

4. Turn the ⋖ ⋗ dial to select [Viewfinder display], then press ⋖ ⋗.

5. Turn the ⋖ ⋗ dial to select [Electronic level], then press ⋖ ⋗.

6. Turn the ⋖ ⋗ dial to select [Show], then press ⋖ ⋗.

7. Press the shutter button halfway.

Caution
