An electronic level can be displayed on the screen when shooting as a guideline to determine if the camera is level.
Caution
Using the Electronic Level
An electronic level can be displayed as a guideline to ensure the camerais level from front to back and left to right.
1. Turn the camera on.

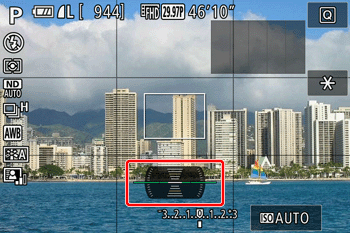

2. Press the [ ] button several times to display the electronic level.

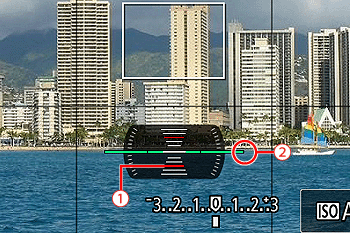

3. If the camera is tilted, move it so that the red level line changes to green.
Caution
Calibrating the Electronic Level
Calibrate the electronic level if it seems ineffective in helping you level the camera.
For greater calibration accuracy, display grid lines to help you level the camera in advance.
Caution
1. Place the camera on a flat surface, such as a table.
2. Press the [MENU] button

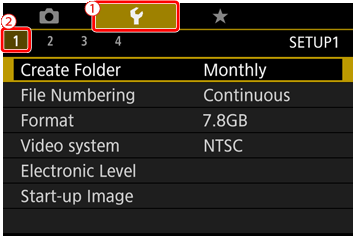

3. Choose the [ ] tab from the menu screen.
: Operate the zoom lever to choose the [
] tab.
: Press the [
] , [
] buttons to choose [
].

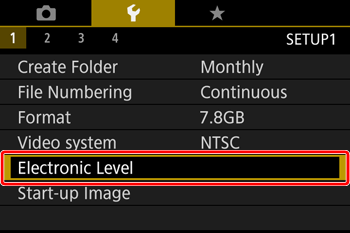

4. Press the [ ] , [
] buttons to choose [Electronic Level], and then press the [
] button.

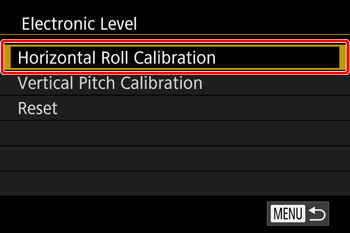

5. Press the [ ] , [
] buttons to choose [Horizontal Roll Calibration], and then press the [
] button.
Caution

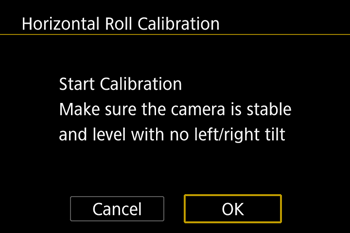

6. Press the [ ] , [
] buttons to choose [OK], and then press the [
] button.

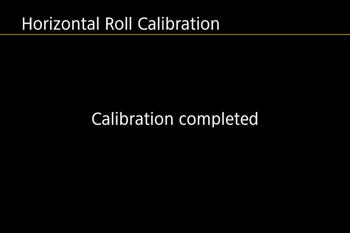

This concludes the electronic level calibration procedure.
