With CameraWindow* you can save MP4 movies and photos to your computer.
* Software for photos and MP4 movies.
Caution
Connecting the Camcorder to the Computer

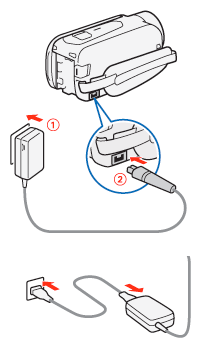

1. Power the camcorder using the compact power adapter.
2. Press ⋖Playback⋗ button to set the camcorder to Playback mode.
3. Touch [ ].

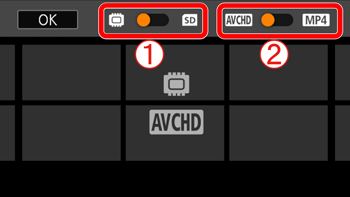

4. Touch to switch between the
(Built-in memory) and the
(Memory card).
Touch to switch to (MP4 format).
5. Touch [ ].

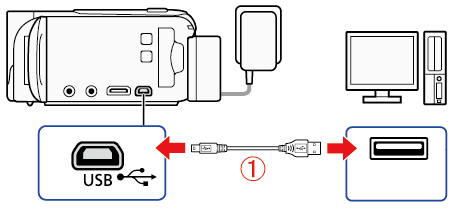

6. Connect the camcorder to the computer using the supplied USB cable.
Computer: CameraWindow will start automatically and the main screen will appear.
Caution

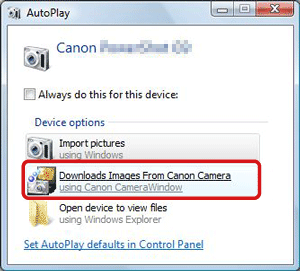

If the [AutoPlay] screen does not appear, click [Start] ⋗ [All Programs] or [Programs] ⋗ [Canon Utilities] ⋗ [CameraWindow] ⋗ [CameraWindow].
- When the camera and computer become capable of communicating, CameraWindow will start.
- If a device selection window appears, select your camcorder’s model name from the list and click OK.
Using CameraWindow
1. The following window appears.

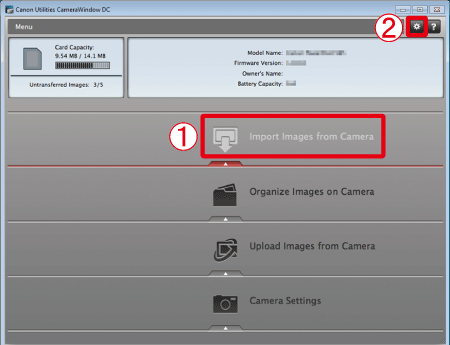

2. The [CameraWindow] menu appears. Click [Import Images from Camera].
Caution
By default, the imported movies and images will be saved in folders separated by shooting date in the computer’s [Picture] folder.

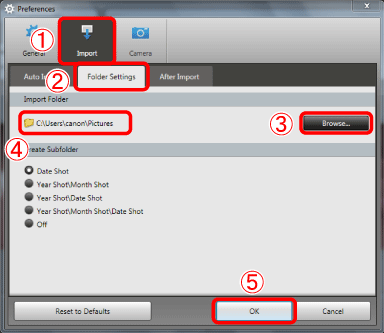

To change the destination folder, click (
) (displayed in the upper right of the screen shown in step 2), and perform the following procedure.
Click [Import] ⋗
[Folder Settings] ⋗
[Browse], and specify a folder as the destination folder.
Confirm the destination folder that you have specified.
Then, click [OK].

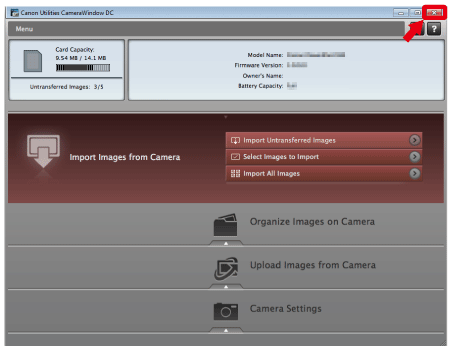

3. A window like the one shown below appears, so click [Import Untransferred Images] or
[Import All Images].
Caution
3-1. To select and import movies or images, click [Select Images to Import] in Step 3.
3-2. Select the movies and images you want to import, and then click
[Import] (
).
After this step, please follow the subsequent procedures below.
Caution
Icons displayed on thumbnail images:
[
] appears on untransferred movie and photos.
If [ ] does not appear, the movie or photo has already been transferred.
[
] appears on movie files.
[ ] does not appear on photos.
4. The following window appears, and the computer starts to transfer movies and images from the camcorder.
5. The following screen appears after the movies and images have been transferred. Click [ OK ].
6. The following window appears.
Click the [ ] button to close the window.
Caution
- Do not open the memory card slot cover and do not remove the memory card.
- Do not change or delete any of the camcorder’s folders or files directly from the computer as this may result in permanent data loss. When saving recordings on a computer, we recommend using the software described in this section (Transfer Utility LE for AVCHD movies; CameraWindow for MP4 movies and photos).
-Do not set the computer in Sleep or Hibernate mode (Windows) and do not activate the Sleep function (Mac OS).
Caution
To uninstall CameraWindow:
- Windows: In the Control Panel, open Programs and Features or Add or Remove Programs. Select Canon Utilities CameraWindow DC 8, click Uninstall or Uninstall/ Change and then click OK.
- Mac OS: Drag and drop the following folder to the Trash:
/Applications/Canon Utilities/CameraWindow
The following types of MP4 scenes will be recognized as multiple files on a computer.
- Scenes exceeding 4 GB.
- Scenes recorded at 35 Mbps exceeding 30 minutes.
- Scenes recorded at a video quality other than 35 Mbps exceeding 1 hour.
