Solution
The following explains the procedure for opening and closing the memory card/battery cover.
The insertion methods for both the battery and memory card are included.

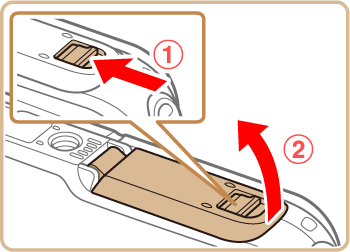

1. Open the cover.
Slide the lock () and open the cover (
).

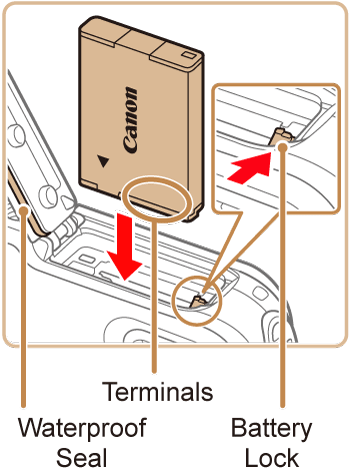

2. Insert the battery pack.
While pressing the battery lock in the direction of the arrow, insert the battery pack as shown and push it in until it clicks into the locked position.
If you insert the battery facing the wrong way, it cannot be locked into the correct position. Always confirm that the battery is facing the right way and locks when inserted.
Be careful not to damage the waterproof seal when inserting the battery pack.

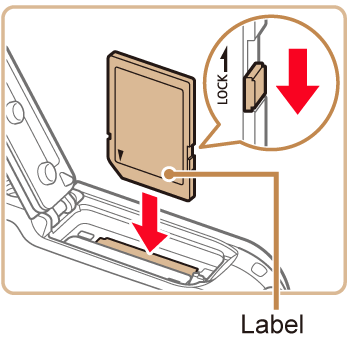

3. Insert the memory card.
Recording is not possible on memory cards with a write-protect tab when the tab is in the locked position. Slide the tab to the unlocked position.
Insert the memory card facing as shown until it clicks into the locked position.
Make sure the memory card is facing the right way when you insert it. Inserting memory cards facing the wrong way may damage the camera.
Be careful not to damage the waterproof seal when inserting the memory card.

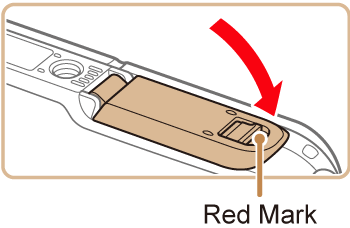

4. Close the cover.
Lower the cover in the direction of the arrow and press it until it clicks into the closed position.
Make sure the lock returns to the position shown, with the red mark no longer visible.
This completes the steps for opening and closing the memory card/battery cover.
