Outdoor Remote Camera CR-X500

Outdoor Pan and Tilt Broadcast Camera
  • 15x optical zoom lens
  • Large 1" CMOS sensor supporting 4K definition
  • Dual Pixel CMOS AF with face detection
alt-text
Where to buy
Outdoor Pan and Tilt Broadcast Camera
  • 15x optical zoom lens
  • Large 1" CMOS sensor supporting 4K definition
  • Dual Pixel CMOS AF with face detection

Exceptional broadcast-quality 4K UHD video capture and advanced robotic remote control pan-tilt-zoom operation

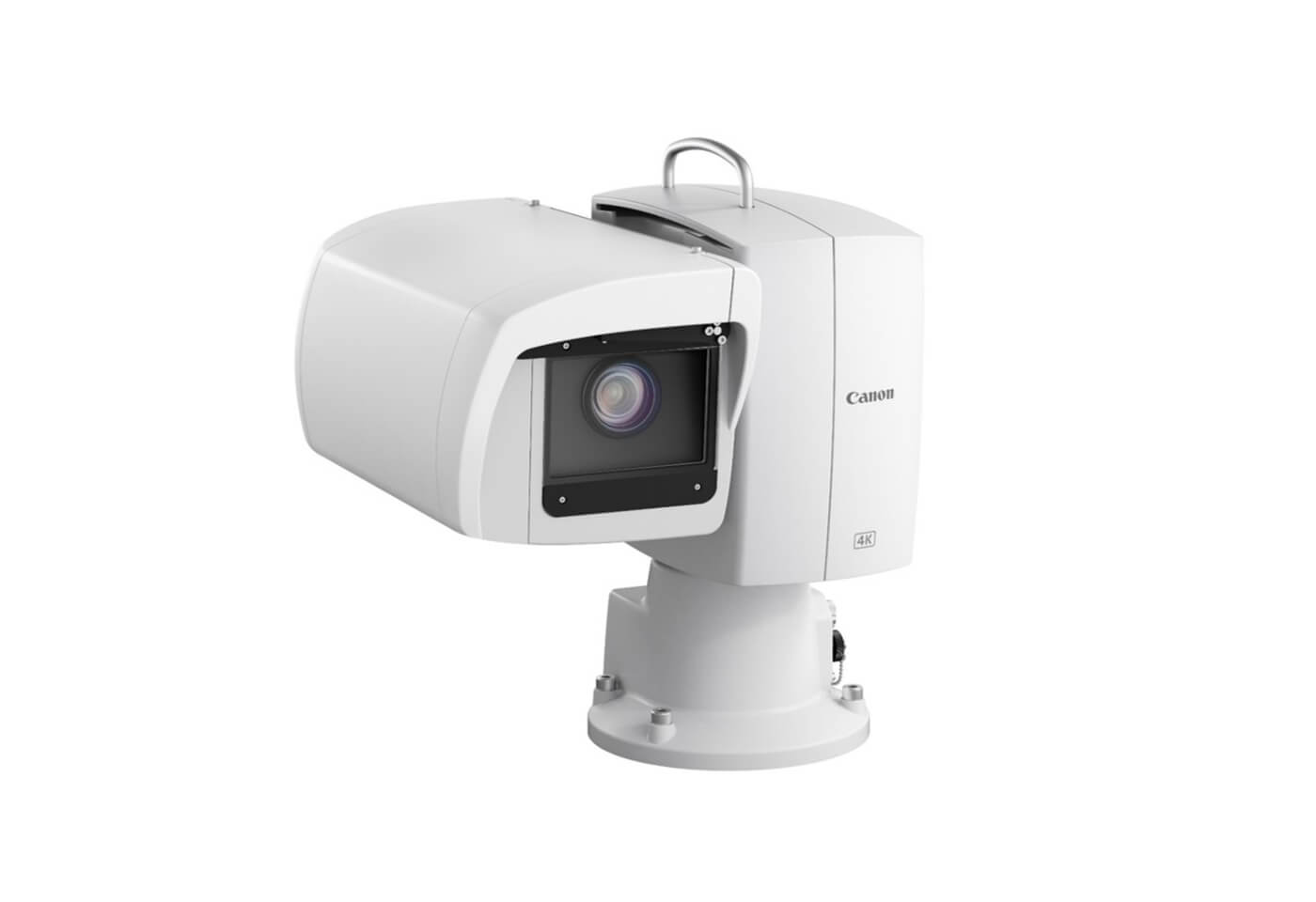

Product image of Outdoor Remote Camera CR-X500

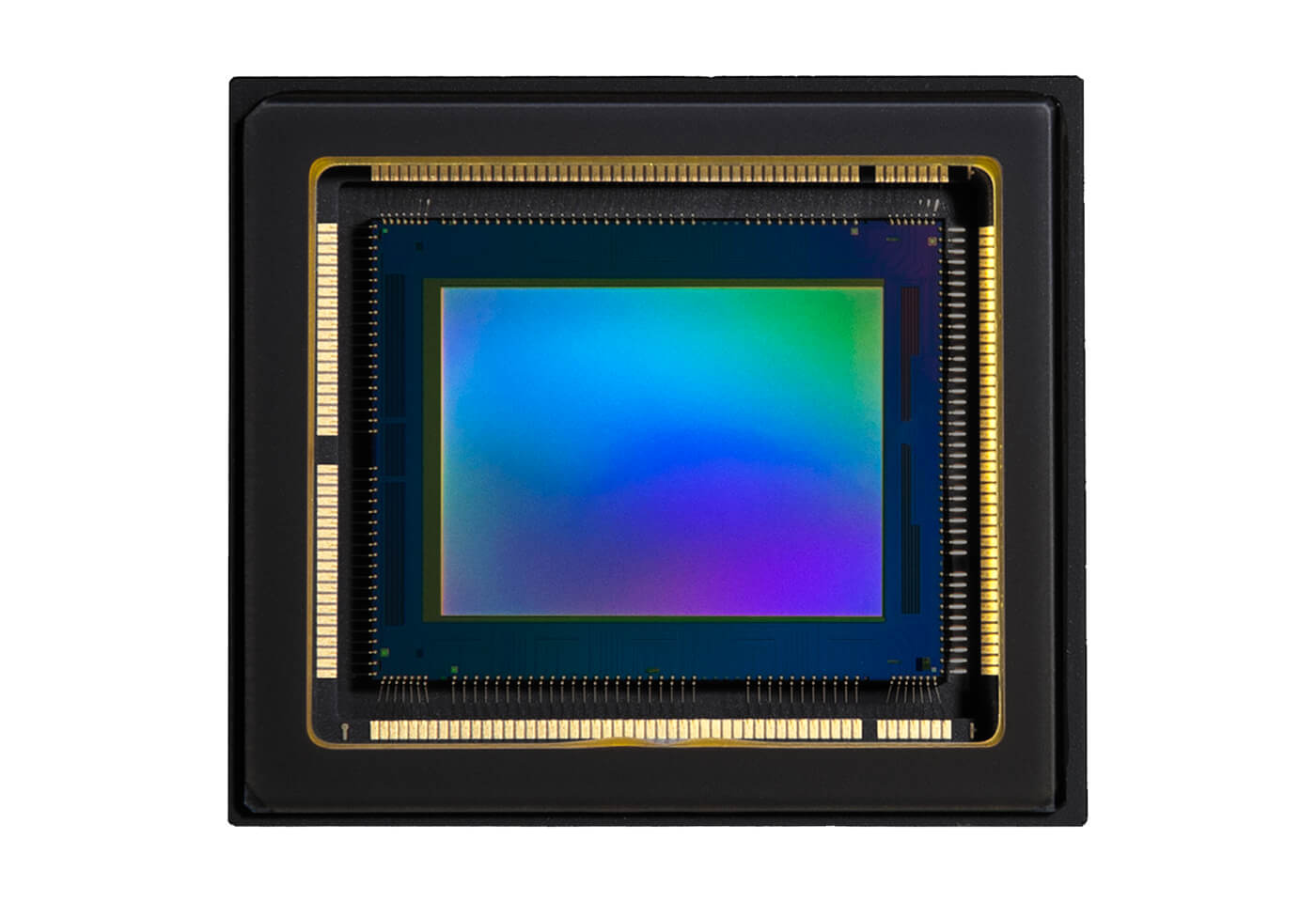

  • Large 1" 4K CMOS Sensor

    4K UHD 60p 4:2:2 10bit recording to capture true-to-life 4K video production. Featuring a large 1.0-Type CMOS sensor, in combination with the Dual DIGIC DV 6 processors which further enhance high sensitivity and low noise performance.

    Large 1" 4K CMOS Sensor

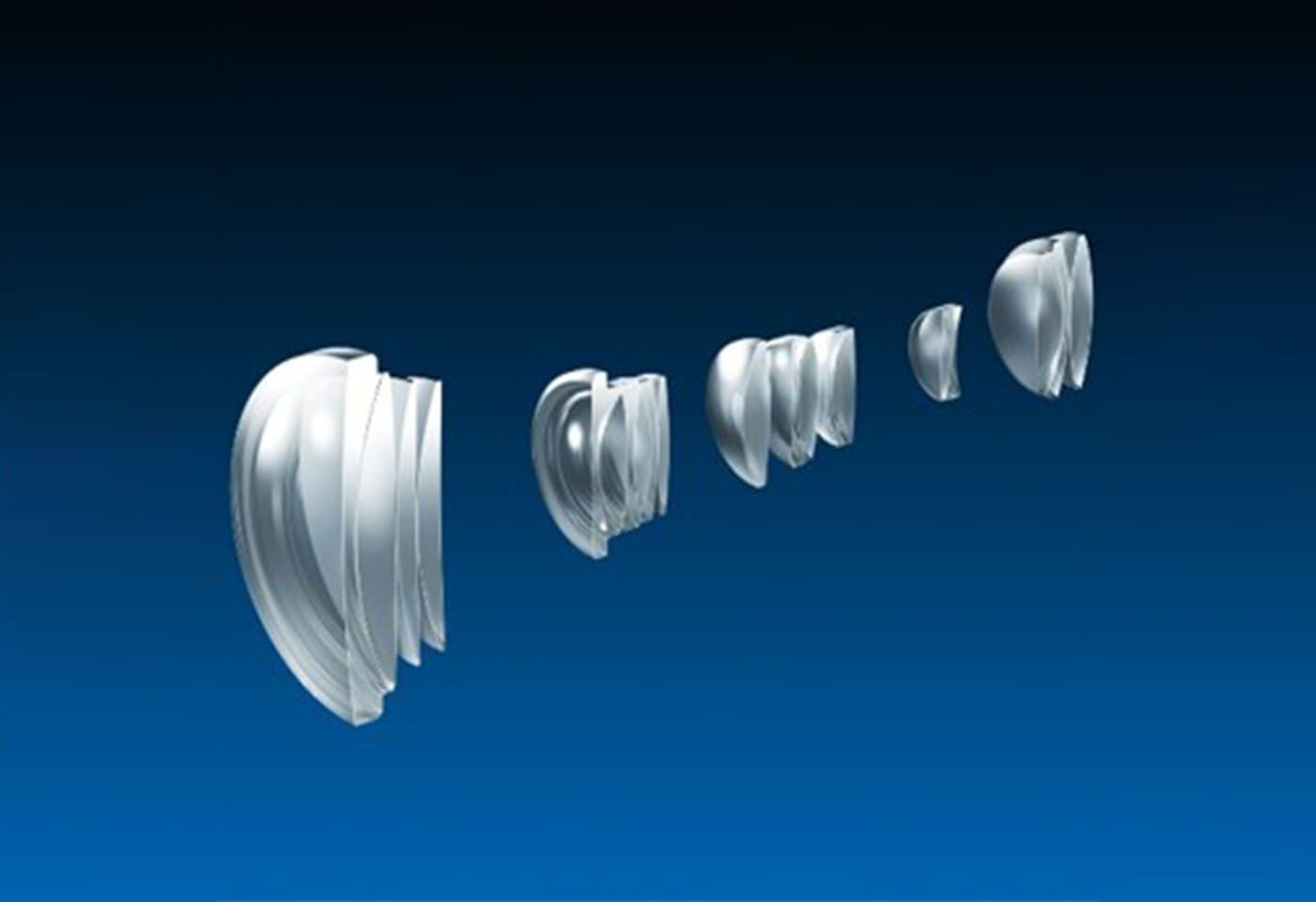

  • Pan, Tilt and Zoom control

    Remote control operation allows Horizontal Pan movement by ±170°, Vertical Tilt movement from -50° to +30° and 15x Optical Zoom starting from a wide angle of 25.5mm.

    Pan, Tilt and Zoom control

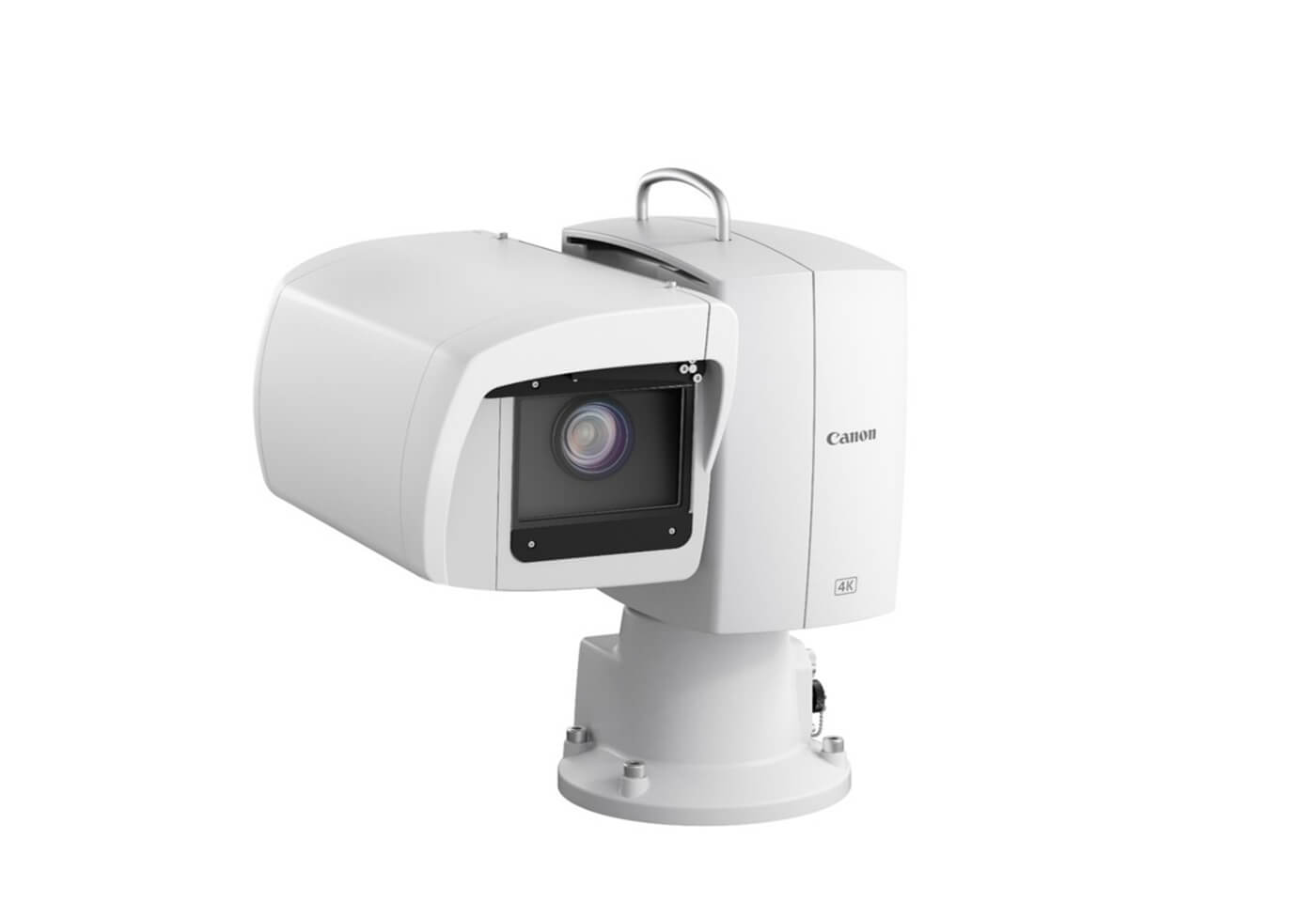

  • Durable, Water-proof and Dust Proof

    Durability and air-tight design allows it to be used both indoors and outdoors. This model satisfies the IP55 dust-proof and water-proof rating, so it can be permanently installed in indoor locations with high levels of dust or in outdoor locations exposed to the wind, rain and other harsh environments.

    Durable, Water-proof and Dust Proof

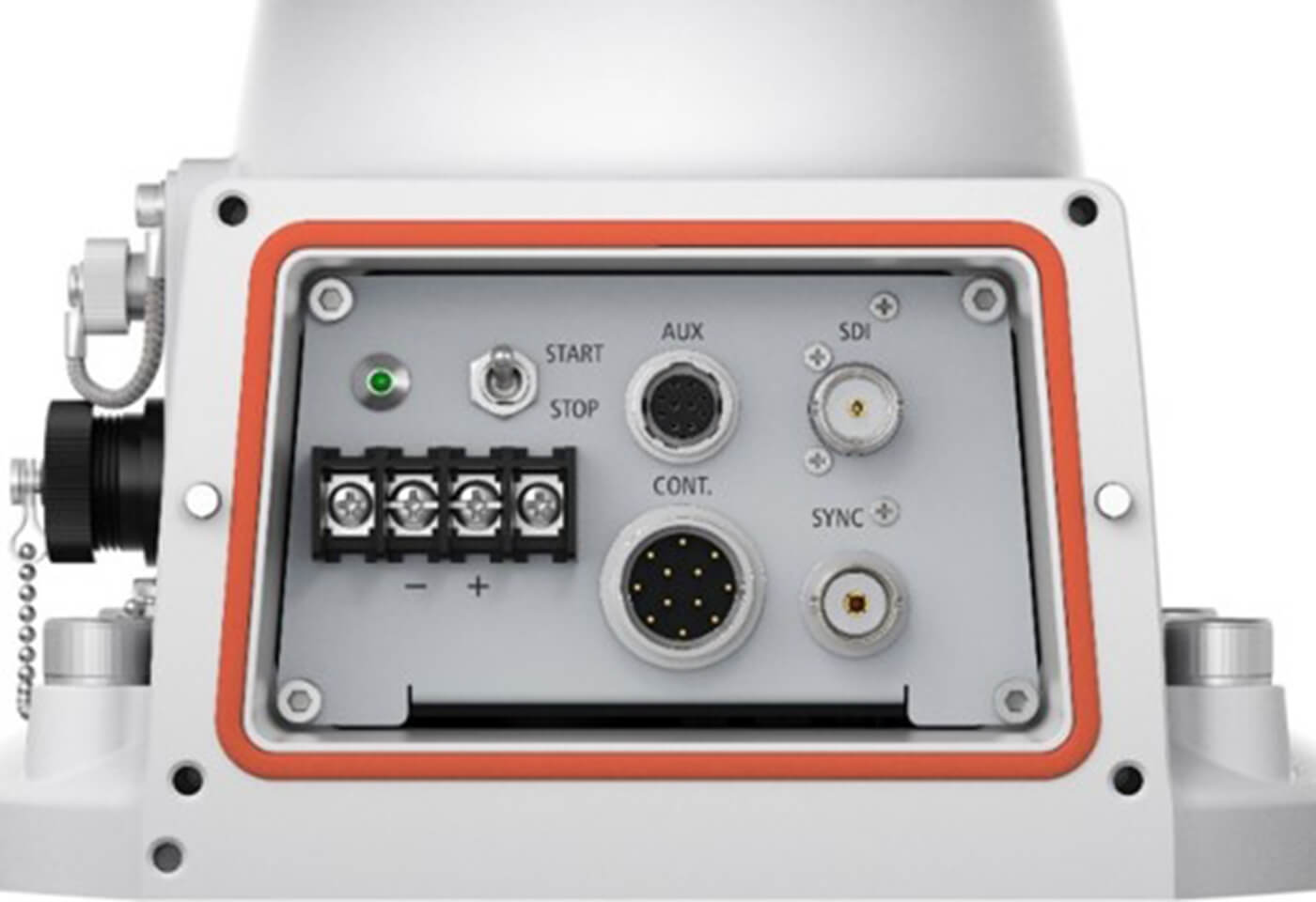

  • IP Ready for Remote Production & System Integration

    Combining Canon’s advanced imaging and network technologies with various IP protocol compatibilities, including the newly developed XC Protocol, that realises a simple and efficient remote production workflow.

    IP Ready for Remote Production & System Integration

Specifications and brochure

Image Sensor
1" CMOS Sensor
Optical Zoom
15x
Focal Length
25.5mm - 382.5mm (4K UHD)
Maximum Resolution
4K 60p (3840 x 2160)
Video Compression (Max)
4:2:2 10 bit
Video Output
12G-SDI
Pan Operating Range and Speed
±170°, 0.5°/s - 25°/s
Tilt Operating Range and Speed
-50°- 30°, 0.3°/s - 20°/s
Dustproof or Waterproof
IP55
Wiper
Yes
Terminals
DC, Control, SDI (12G output), GENLOCK, AUX
ND Filter
Y (1/1, 1/4, 1/16, 1/64)

Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
